Siemens Deka 630cc Injectors 60lb/h 107961 Fi114961 EV1

52.20

Categories: ,

Description

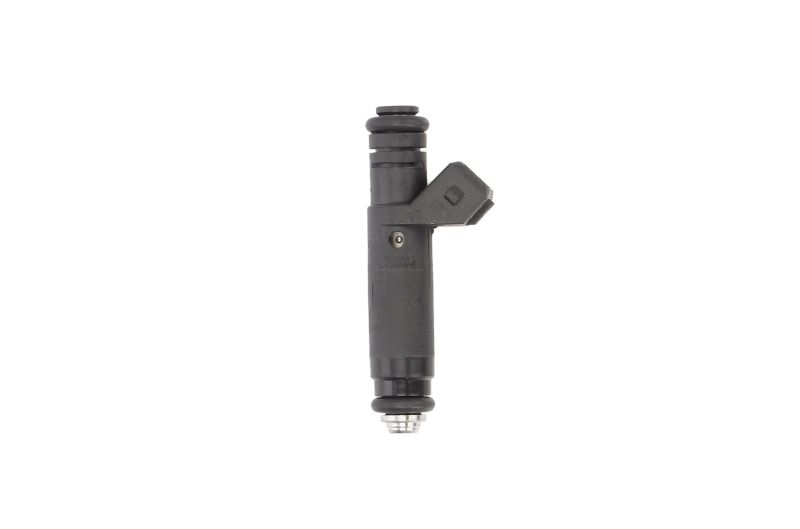

Genuine Siemens / Mototron DEKA IV ( DEKA 4 ) High Impedance Injectors



Features:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Siemens Deka 630cc Injectors Specifications:

– Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM  driver modifications required)
– Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min  = 453 g/min
– Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 85.7 lb/hr = 900 cc/min  = 648 g/min
– Gain: 0.11ms/mg
– Offset: 0.055ms
– Turn on time @ 14VDC: 1.14ms
– Turn off time: 0.85ms @ 600KPa
– Connector: Bosch EV1
– Orifice Type: Multi-orifice
– Spray Pattern: 30 Degree Spray Cone
– Factory fitted with Viton upper and lower o-rings
– 74,7mm end to end
– 64mm o-ring to o-ring



Equivalent Part Numbers:
Siemens FI114961 or 107-961 ( 107961 )

Additional information

Weight50 g
